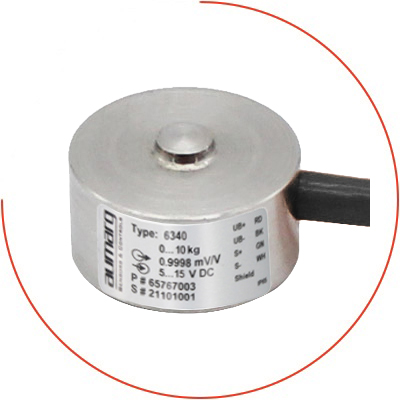

| Series 6340 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 3 kg to 0 ... 100 kg |
| Non-linearity：≤ ± 1,0% F.S. |
| Rated output：1,0 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ2 × 3000 mm |
|
| |
|
 |

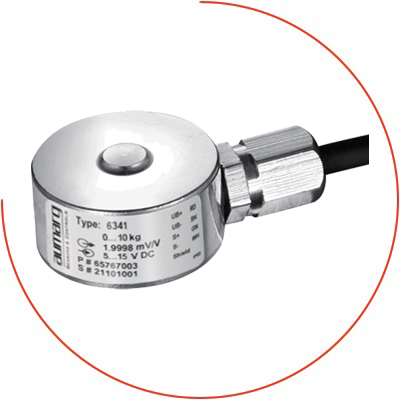

| Series 6341 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 5 kg to 0 ... 200 kg |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ2 × 3000 mm |
|
| |
|
 |

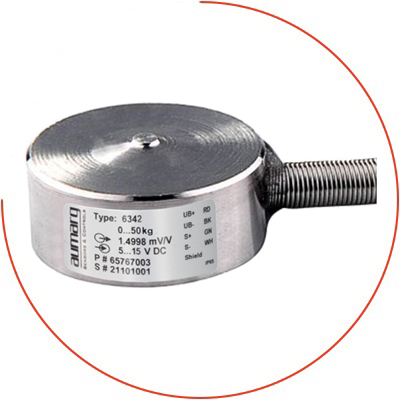

| Series 6342 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 5 kg to 0 ... 100 kg |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：≤ 20 kg：Φ2 × 1500 mm；≥ 30 kg：Φ3 × 1500 |
|
| |
|
 |

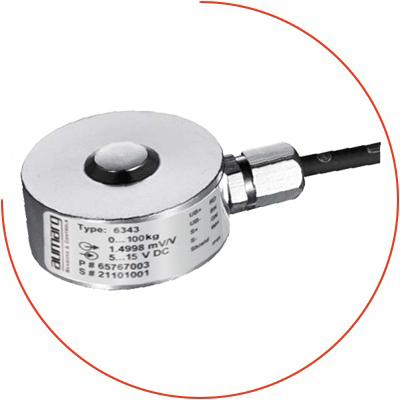

| Series 6343 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 5 kg to 0 ... 1000 kg |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ3 × 1500 mm |
|
| |
|
 |

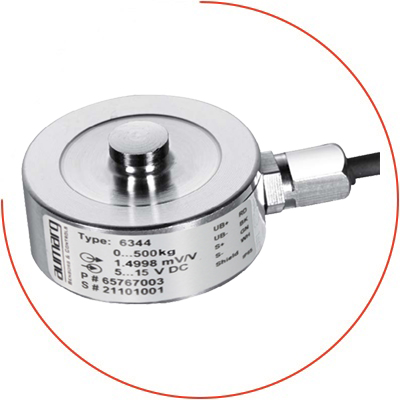

| Series 6344 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 5 kg to 0 ... 2000 kg |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ3 × 1500 mm |
|
| |
|
 |

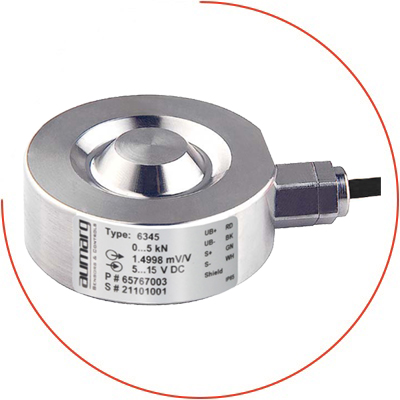

| Series 6345 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 50 kN to 0 ... 120 kN |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ3 × 1500 mm |
|
| |
|
 |

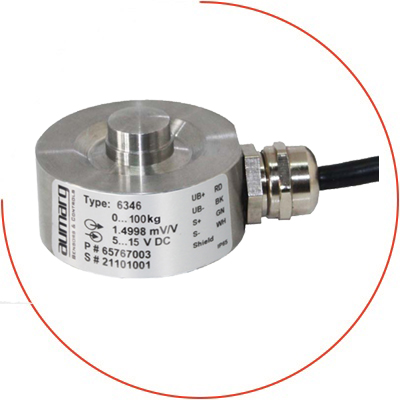

| Series 6346 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 5 kg to 0 ... 2000 kg |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ4 × 1500 mm |
|
| |
|
 |

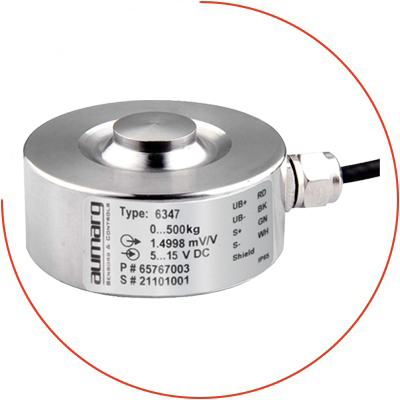

| Series 6347 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 20 kg to 0 ... 10 t |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ4 × 3000 mm |
|
| |
|
 |

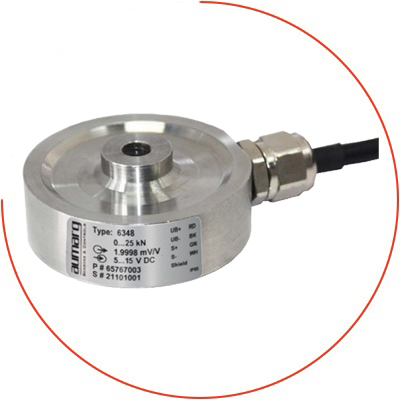

| Series 6348 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 0.5 kN to 0 ... 25 kN |
| Non-linearity：≤ ± 0,5% F.S. |
| Rated output：2,0 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ4 × 1500 mm |
|
| |
|
 |

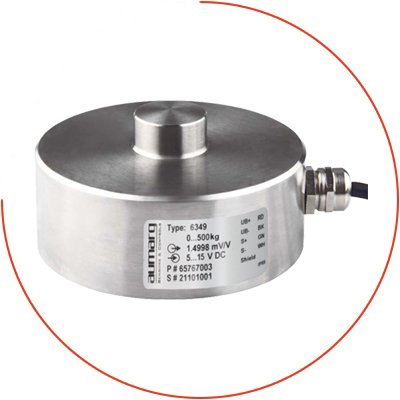

| Series 6349 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 250 kg to 0 ... 100 t |
| Non-linearity：≤ ± 0,05% F.S. |
| Rated output：1,5 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ5 × 5000 mm |
|
| |
|
 |

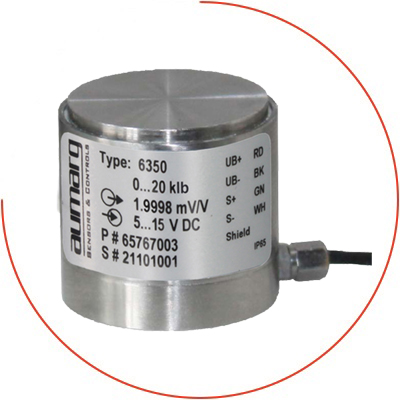

| Series 6350 - Compression Load Cell |
| Miniature design、Stainless steel construction |
| |
| Maximum capacity：0 ... 2 klb to 0 ... 60 klb |
| Non-linearity：≤ ± 1,0% F.S. |
| Rated output：2,0 ± 10% mV/V |
| Load cell material：Stainless steel |
| Load direction：Compression Force |
| Cable size：Φ2 × 1500 mm |
|
| |
|
