| Amplifier |
| |
 |

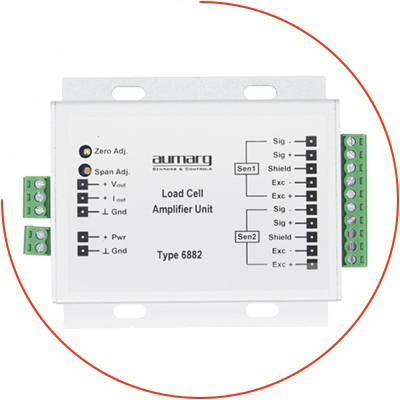

| Series 6882 - Analogue Amplifier |
| 1 In 1 Out、2 In 1 Out |
| |
| Input signal：0,8 ... 6 mV/V |
| Sensor supply：5 V DC |
| Output signal ：4(0) ... 20 mA / 0 ... 5 V / 0 ... 10 V / 0 ... ± 5 V / 0 ... ± 10 V |
| Power supply：16 ... 30 V DC |
| Accuracy：≤ ± 0.05% F.S. |
| Limit frequency：≥ 1000 Hz( Standard ) / ≥ 5000 Hz( option ) |
| Protection：IP53 |
| |
|
| |
|
 |

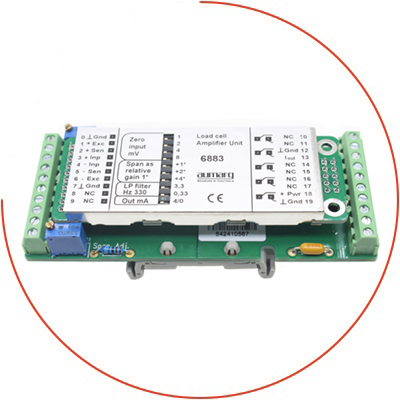

| Series 6883 - Analogue Amplifier |
| DIN-Rail Mounting |
| |
| Input signal：-2 ... 0 ... +23 mV，4 wire |
| Sensor supply：10 V DC ，Max. 30 mA |
| Output signal ：0 ... 20 mA / 4 ... 20 mA / 0 ... 10 V |
| Power supply ：12 ... 24 V DC |
| Accuracy：≤ ± 0.1% F.S. |
| Limit frequency：0,33、3,3、33 Hz, selectable |
| Protection：IP40 |
| |
|
| |
|
|
|
|
|
