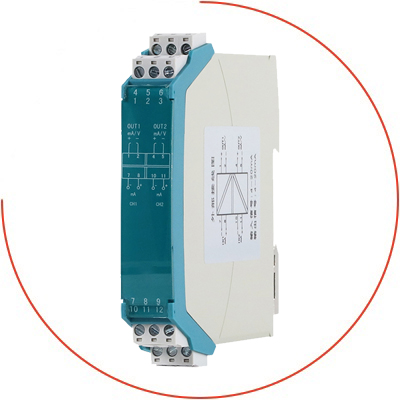

| Series 9302 - Passive Signal Isolated Converter |
| 1 In 1 Out、2 In 2 Out |
| |
| Input signal：4 ... 20 mA、0 ... 20 mA |
| Transmission error @20°C：≤ ± 0.15% |
| Channel mode：1 In 1 Out、2 In 2 Out、3 In 3 Out、4 In 4 Out |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 5 V、 1 ... 5 V |
| Step response：≤ 2 ms（10% ~ 90%） |
| Test voltage：2000 V AC / 1 min (input/output) |
| Power supply type：passive (via input) |
| Mounting type：DIN-35 rail |
| Protection degree：IP20 |
| |
|
| |
|
 |

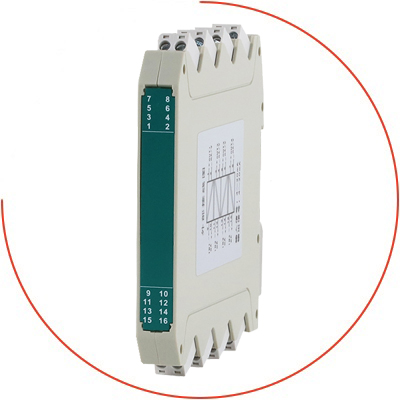

| Series 9304 - Passive Signal Isolated Converter |
| 1 In 1 Out、2 In 2 Out、3 In 3 Out、4 In 4 Out |
| |
| Input signal：4 ... 20 mA、0 ... 20 mA |
| Transmission error @20°C：≤ ± 0.15% |
| Channel mode：1 In 1 Out、2 In 2 Out |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 5 V、 1 ... 5 V |
| Step response：≤ 2 ms（10% ~ 90%） |
| Test voltage：2000 V AC / 1 min (input/output) |
| Power supply type：passive (via input) |
| Mounting type：DIN-35 rail |
| Protection degree：IP20 |
| |
|
| |
|
 |

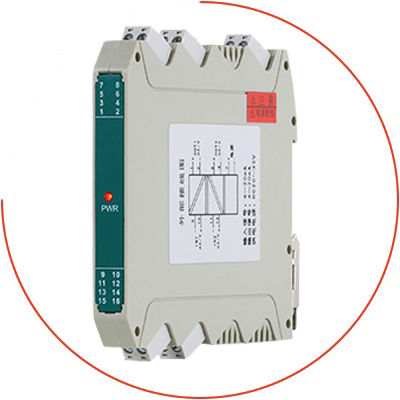

| Series 9311 - Signal Isolated Converter |
| Standard |
| |
| Input signal：4 ... 20 mA、0 ... 20 mA、0 ... 5 V、 1 ... 5 V、0 ... 10 V |
| Transmission error @20°C：≤ ± 0.1% |
| Channel mode：1 In 1 Out、1 In 2 Out、2 In 2 Out |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 5 V、 1 ... 5 V、0 ... 10 V |
| Response time：≤ 2 ms（Current input） ； ≤ 10 ms（Voltage input） |
| Test voltage：2000 V AC / 1 min (input/output) |
| Power supply：20 ... 32 V DC |
| Mounting type：DIN-35 rail |
| Protection degree：IP20 |
| |
|
| |
|
 |

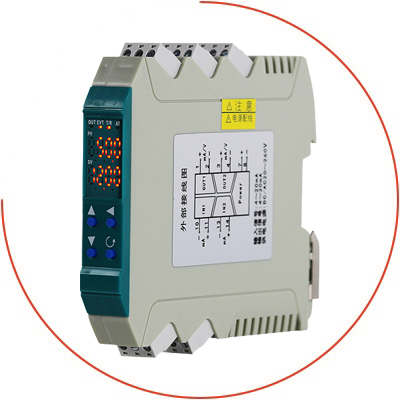

| Series 9312 - Intelligent Signal Isolated Converter |
| With display and key |
| |
| Input signal：mA、mV、V DC |
| Transmission error @20°C：≤ ± 0.1% |
| Channel mode：1 In 1 Out、1 In 2 Out、2 In 2 Out |
| Output signal：4 ... 20 mA、0 ... 10 mA、0 ... 20 mA、0 ... 5 V、 1 ... 5 V、0 ... 10 V |
| RS485 communication interface：Modbus RTU communication protocol；Communication distances:≤ 1000 m；Baud rate:≤ 19.2 kbps |
| Response time：≤ 50 ms |
| Test voltage：1500 V AC / 1 min (input/output) |
| Power supply：20 ... 32 V DC |
| Mounting type：DIN-35 rail |
| Protection degree：IP20 |
| |
|
| |
|
 |

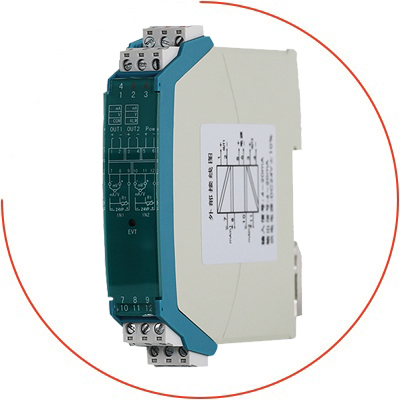

| Series 9313 - Intelligent Signal Isolated Converter |
| Programmable |
| |
| Input signal：mA、V DC |
| Transmission error @20°C：≤ ± 0.2% |
| Channel mode：1 In 1 Out、1 In 2 Out、2 In 2 Out |
| Output signal：4 ... 20 mA、0 ... 10 mA、0 ... 20 mA、0 ... 5 V、 1 ... 5 V、0 ... 10 V |
| RS485 communication interface：Modbus RTU communication protocol；Communication distances:≤ 1000 m；Baud rate:≤ 9.6 kbps |
| Response time：Single output : ≤ 0.3 S; Dual output : ≤ 0.5 S |
| Test voltage：1500 V AC / 1 min (input/output) |
| Power supply：24±10% V DC |
| Mounting type：DIN-35 rail |
| Protection degree：IP20 |
| |
|
| |
|
