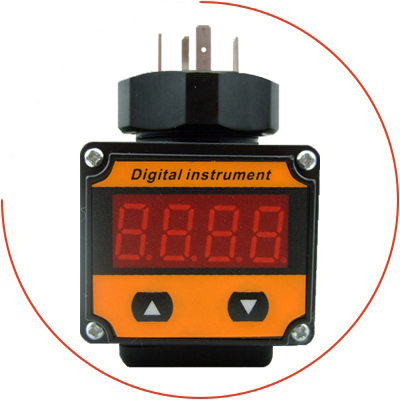

| Series 9110 - Attachable Indicator |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.1% |
| Unit：Many different units can be chosen |
| Power supply：powered by the 4 ... 20 mA loop |
| Electrical connection：DIN 175301-803 A |
| Protection degree：IP65 |
| |
|
| |
|
 |

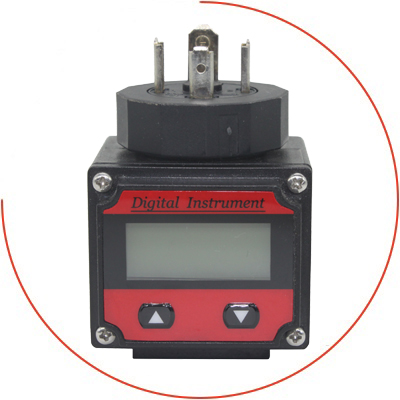

| Series 9111 - Attachable Indicator |
| LCD Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.1% |
| Unit：Many different units can be chosen |
| Power supply：powered by the 4 ... 20 mA loop |
| Electrical connection：DIN 175301-803 A |
| Protection degree：IP65 |
| |
|
| |
|
 |

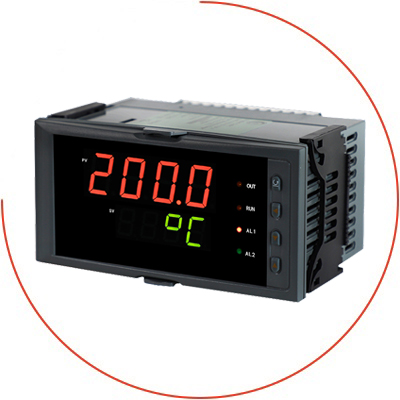

| Series 9201 - Digital Process Controller |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.3% |
| Channels：Single channel |
| Input signal：mA、mV、V DC、RTD、TC |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 10 V、 0 ... 5 V、RS485、Relays etc. |
| Feed output：24 ± 1 V DC |
| Power supply：100 ... 240 V DC/AC、10 ... 36 V DC |
| Protection degree：Front panel IP54; clamps IP20 |
| |
|
| |
|
 |

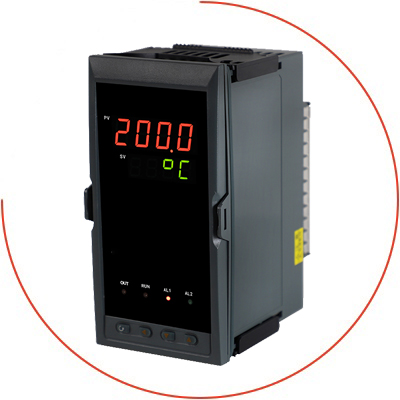

| Series 9202 - Digital Process Controller |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.3% |
| Channels：Single channel |
| Input signal：mA、mV、V DC、RTD、TC |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 10 V、 0 ... 5 V、RS485、Relays etc. |
| Feed output：24 ± 1 V DC |
| Power supply：100 ... 240 V DC/AC、10 ... 36 V DC |
| Protection degree：Front panel IP54; clamps IP20 |
| |
|
| |
|
 |

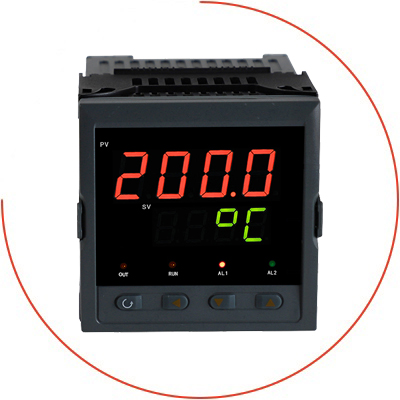

| Series 9203 - Digital Process Controller |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.3% |
| Channels：Single channel |
| Input signal：mA、mV、V DC、RTD、TC |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 10 V、 0 ... 5 V、RS485、Relays etc. |
| Feed output：24 ± 1 V DC |
| Power supply：100 ... 240 V DC/AC、10 ... 36 V DC |
| Protection degree：Front panel IP54; clamps IP20 |
| |
|
| |
|
 |

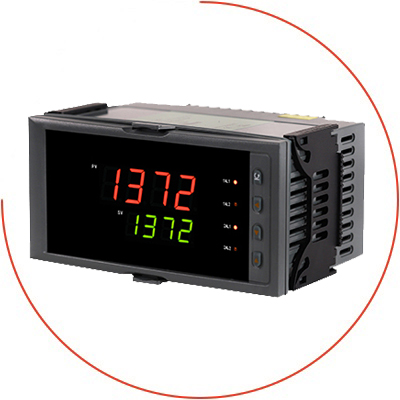

| Series 9211 - Digital Process Controller |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.2% |
| Channels：Dual channel |
| Input signal：mA、mV、V DC、RTD、TC |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 10 V、 0 ... 5 V、RS485、Relays etc. |
| Feed output：24 ± 1 V DC |
| Power supply：100 ... 240 V DC/AC、10 ... 36 V DC |
| Protection degree：Front panel IP54; clamps IP20 |
| |
|
| |
|
 |

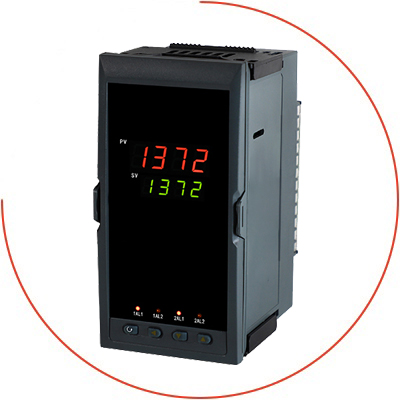

| Series 9212 - Digital Process Controller |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.2% |
| Channels：Dual channel |
| Input signal：mA、mV、V DC、RTD、TC |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 10 V、 0 ... 5 V、RS485、Relays etc. |
| Feed output：24 ± 1 V DC |
| Power supply：100 ... 240 V DC/AC、10 ... 36 V DC |
| Protection degree：Front panel IP54; clamps IP20 |
| |
|
| |
|
 |

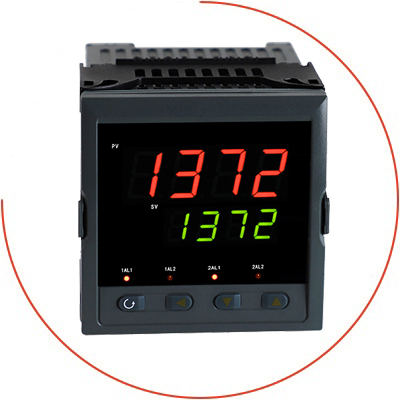

| Series 9213 - Digital Process Controller |
| LED Display |
| |
| Indication range：-1999 ... 9999 |
| Accuracy：± 0.2% |
| Channels：Dual channel |
| Input signal：mA、mV、V DC、RTD、TC |
| Output signal：4 ... 20 mA、0 ... 20 mA、0 ... 10 V、 0 ... 5 V、RS485、Relays etc. |
| Feed output：24 ± 1 V DC |
| Power supply：100 ... 240 V DC/AC、10 ... 36 V DC |
| Protection degree：Front panel IP54; clamps IP20 |
| |
|
