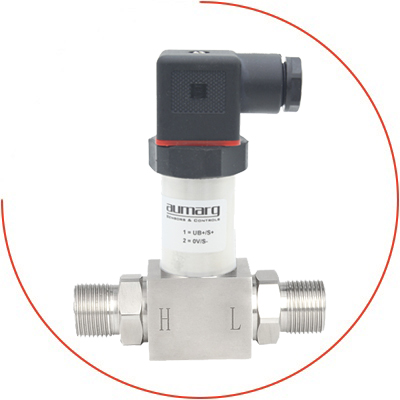

| Series 8521 - Differential Pressure Transmitte |
| Diffused silicon piezoresistive sensor |
| |
| Measuring range：0 ... 0,25 bar to 0 ... 35 bar |
| Accuracy：0,5%、0.25% |
| Output signal：4 ... 20 mA、0 ... 10 V |
| Wetted parts：Stainless Steel 316L + NBR（Option：FKM） |
| Process connection：G1/2 (others on request) |
| Electrical connection：DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
| |
|
| |
|
 |

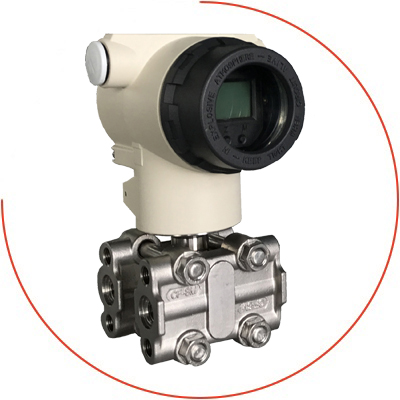

| Series 8551 - Intelligent Differential Pressure Transmitter |
| Mono-silicon piezoresistive sensor |
| |
| Measuring range：0 ... 0,01 bar to 0 ... 40 bar |
| Accuracy：0,075% |
| Output signal：4 ... 20 mA+HART、RS485 |
| Wetted parts：Stainless Steel 316L + NBR（Option：FKM） |
| Process connection：1/4"NPT, 1/2"NPT |
| Electrical connection：Cable gland |
| |
|
| |
|
 |

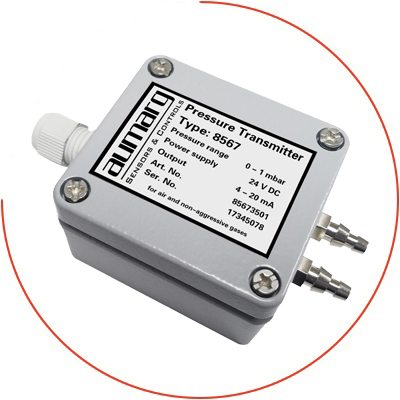

| Series 8567 - Differential Pressure Transmitter |
| Piezoresistive sensor |
| |
| Measuring range：0 ... 0,25 mbar to 0 ... 5 mbar |
| Accuracy：1,0% |
| Output signal：4 ... 20 mA、0 ... 10 V |
| Medium：dry non-aggressive gases |
| Process connection：2 connections for tube with 4 mm or 6mm diameter inside |
| Electrical connection：Cable gland PG7 |
| |
|
| |
|
 |

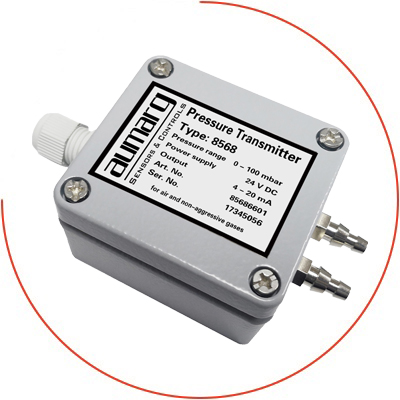

| Series 8568 - Differential Pressure Transmitter |
| Piezoresistive sensor |
| |
| Measuring range：0 ... 2,5 mbar to 0 ... 1000 mbar |
| Accuracy：0,6% |
| Output signal：4 ... 20 mA、0 ... 10 V |
| Medium：dry non-aggressive gases |
| Process connection：2 connections for tube with 4 mm or 6mm diameter inside |
| Electrical connection：Cable gland PG7 |
| |
|
| |
|
 |

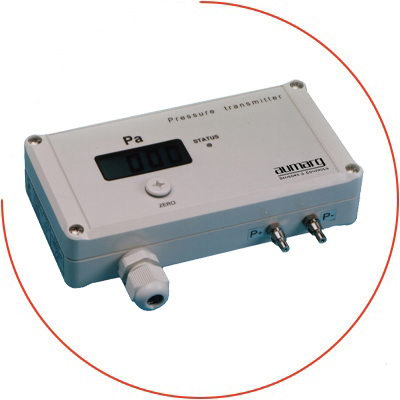

| Series 8569 - LED-display Differential Pressure Transmitter |
| Piezoresistive sensor |
| |
| Measuring range：0 ... 0,5 mbar to 0 ... 10 bar |
| Accuracy：0,6% |
| Output signal：4 ... 20 mA、0 ... 10 V |
| Medium：dry non-aggressive gases |
| Process connection：2 connections for tube with 4 mm or 6mm diameter inside |
| Electrical connection：Cable gland PG7 |
| |
|
