Butterfly Valves

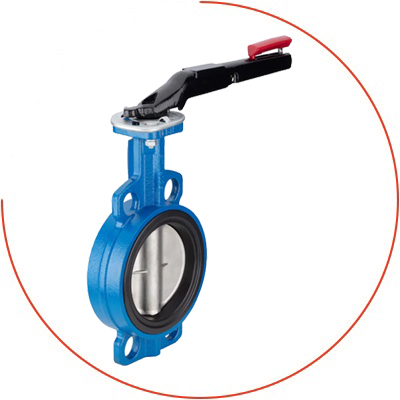

Wafer flange

Orifice sizes：DN40 ... 600

Body material：ductile iron / cast iron / Stainless steel 304 / Stainless steel 316

Disc material：Stainless steel 304 / Stainless steel 316

Stem material：Stainless steel 410 / Stainless steel 304 / Stainless steel 316 / Stainless steel 630

Seat material：EPDM / FKM / PTFE / VITON

Shell testing pressure：24 bar

Medium pressure：Max. 16 bar

Process connection：Wafer flange

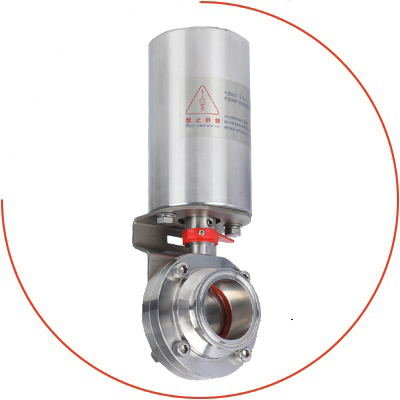

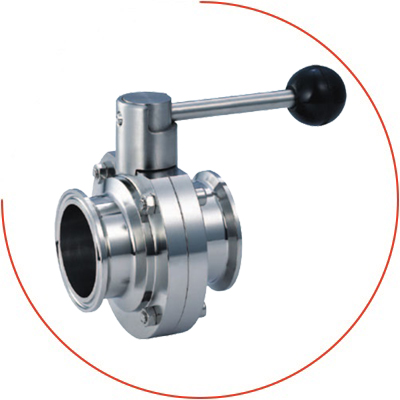

Sanitary Applications

Orifice sizes：DN25 ... 100

Body material：Stainless steel 304 / Stainless steel 316 / Stainless steel 316L

Disc material：Stainless steel 304 / Stainless steel 316 / Stainless steel 316L

Stem material：Stainless steel 304 / Stainless steel 316 / Stainless steel 316L

Seat material：EPDM / PTFE / VITON

Shell testing pressure：24 bar

Medium pressure：Max. 16 bar

Process connection：Weld end / Clamp / Thread

Compact
