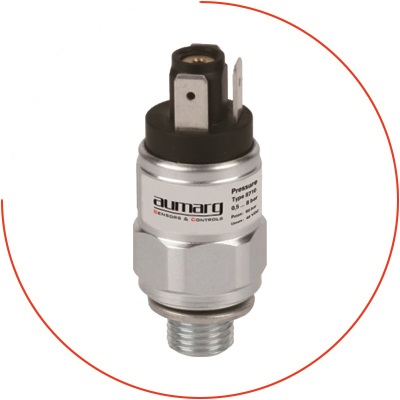

| Series 8710 - Screw-in Pressure Switch |
| Membrane |
| |
| Switch point：0,2 ... 2 bar to 1 ... 16 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：60 bar |
| Voltage：~ 48 V AC / ~ 24 V DC |
| Max. current：2A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |
| Series 8711 - Screw-in Pressure Switch |
| Piston |
| |
| Switch point：10 ... 30 bar to 30 ... 320 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：350 bar |
| Voltage：~ 48 V AC / ~ 24 V DC |
| Max. current：2A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

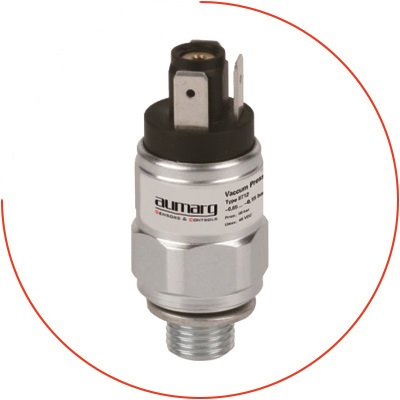

| Series 8712 - Screw-in Pressure Switch |
| Membrane（Vacuum） |
| |
| Switch point：-0,85 ... -0,15 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：20 bar |
| Voltage：~ 48 V AC / ~ 24 V DC |
| Max. current：2A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

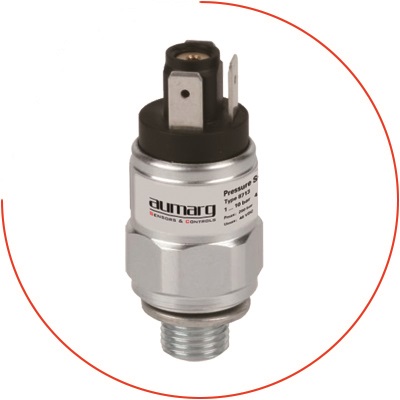

| Series 8713 - Screw-in Pressure Switch |
| Membrane |
| |
| Switch point：1 ... 10 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：200 bar |
| Voltage：~ 48 V AC / ~ 24 V DC |
| Max. current：2A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

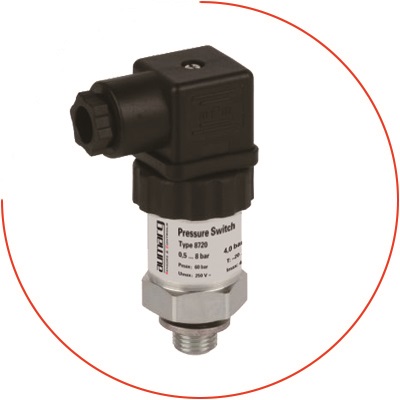

| Series 8720 - Compact Pressure Switch |
| Membrane |
| |
| Switch point：0,2 ... 2 bar to 1 ... 16 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：60 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：4A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

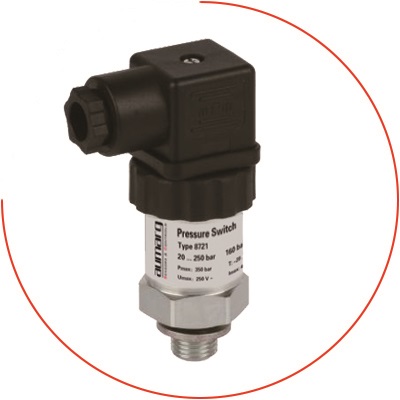

| Series 8721 - Compact Pressure Switch |
| Piston |
| |
| Switch point：10 ... 30 bar to 30 ... 320 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：350 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：4A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

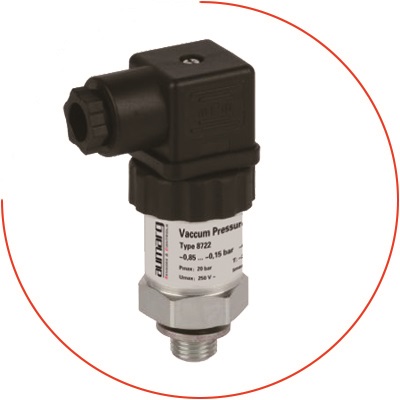

| Series 8722 - Compact Pressure Switch |
| Membrane（Vacuum） |
| |
| Switch point：-0,85 ... -0,15 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：20 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：4A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

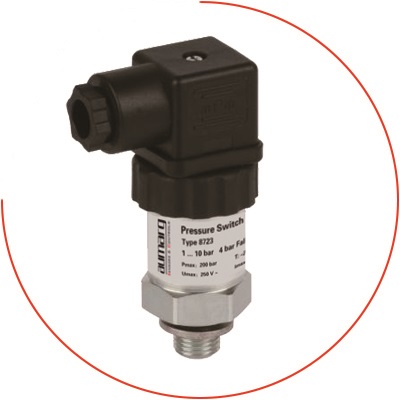

| Series 8723 - Compact Pressure Switch |
| Membrane |
| |
| Switch point：1 ... 10 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：200 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：4A |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

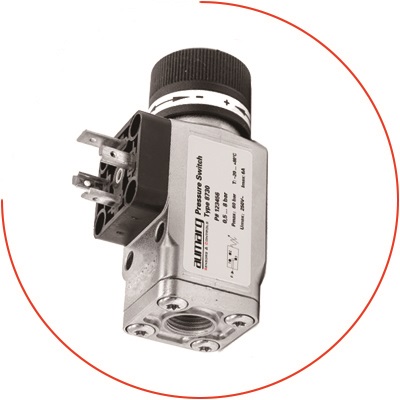

| Series 8730 - Block Pressure Switch |
| Membrane |
| |
| Switch point：0,2 ... 2 bar to 1 ... 16 bar |
| Switching function：SPDT |
| Max. system pressure：60 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：6A（AC）/ 3A（DC） |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

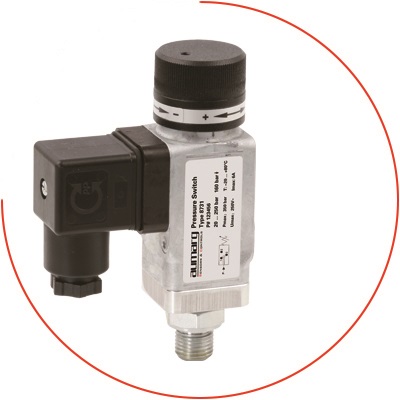

| Series 8731 - Block Pressure Switch |
| Piston |
| |
| Switch point：10 ... 30 bar to 30 ... 320 bar |
| Switching function：SPDT |
| Max. system pressure：350 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：6A（AC）/ 4A（DC） |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

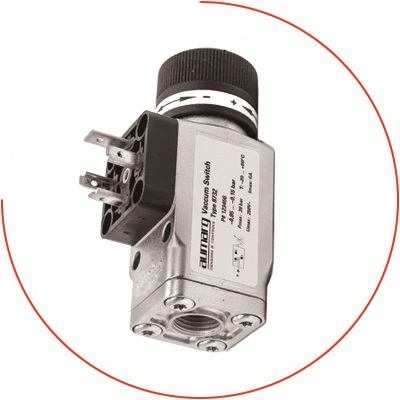

| Series 8732 - Block Pressure Switch |
| Membrane（Vacuum） |
| |
| Switch point：-0,85 ... -0,15 bar |
| Switching function：SPDT、NC、NO |
| Max. system pressure：20 bar |
| Voltage：~ 250 V AC / ~ 24 V DC |
| Max. current：6A（AC）/ 4A（DC） |
| Housing material：Zinc plated steel / Stainless steel |
|
| |
|
 |

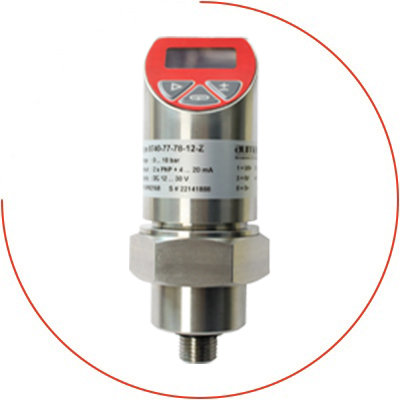

| Series 8740 - Electronic pressure switch |
| OLED display |
| |
| Pressure range：-1 ... 0 bar to 0 ... 1000 bar |
| Output signal：2 × PNP、1 × PNP + 4 ... 20 mA、2 × PNP + 4 ... 20 mA |
| Switch power rating：Max. 500mA |
| Supply voltage：12 ...30 V DC |
| Wetted parts：Stainless Steel 316L,Sealing material |
| Process connection：G1/4", 1/4NPT male thread (others on request) |
| |
|
