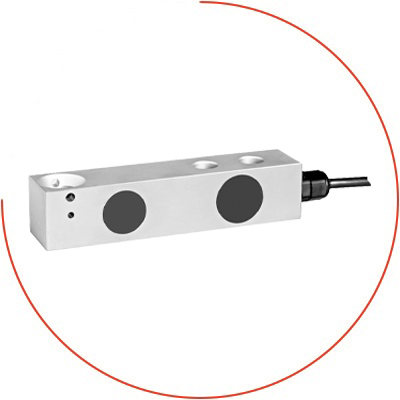

| Series 6220 - Shear Beam Load Cell |
| Good long-term stability、High side load tolerance |
| |
| Maximum capacity：0 ... 200 lb to 0 ... 5000 lb （0 ... 91 kg to 0 ... 2268 kg） |
| Non-linearity：≤ ± 0,02 % F.S. |
| Rated output：2.0 ± 0,1% mV/V |
| Load cell material：stainless steel 17-4 PH |
| Sealing：potted |
| Cable size：Φ5 × 3000 mm |
|
| |
|
 |

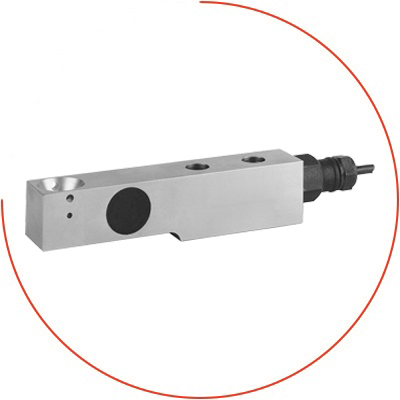

| Series 6221 - Shear Beam Load Cell |
| Good long-term stability、High side load tolerance |
| |
| Maximum capacity：0 ... 5 kNto 0 ... 100 kN（0 ... 510 kg to 0 ... 10197 kg） |
| Non-linearity：≤ ± 0,02 % F.S. |
| Rated output：2.0 ± 0,1% mV/V |
| Load cell material：stainless steel 17-4 PH |
| Sealing：potted |
| Cable size：Φ5 × 3000 mm |
|
| |
|
 |

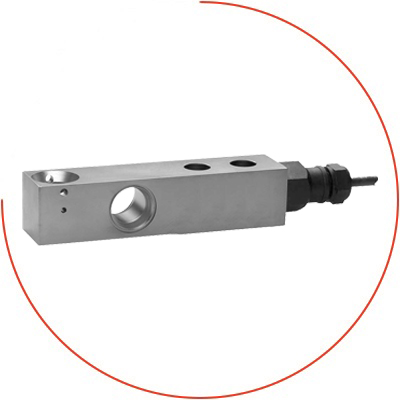

| Series 6222 - Shear Beam Load Cell |
| Good long-term stability、High side load tolerance |
| |
| Maximum capacity：0 ... 500 lb to 0 ... 10000 lb （0 ... 227 kg to 0 ... 4536 kg） |
| Non-linearity：≤ ± 0,02 % F.S. |
| Rated output：2.0 ± 0,1% mV/V |
| Load cell material：stainless steel 17-4 PH |
| Sealing：welded |
| Cable size：Φ5 × 3000 mm |
|
| |
|
 |

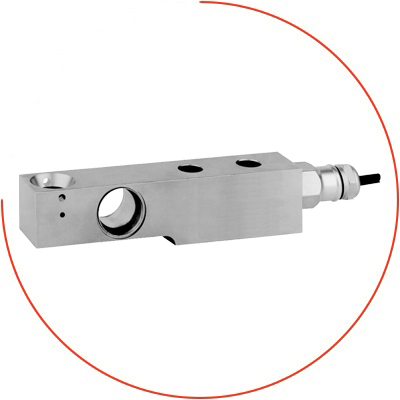

| Series 6223 - Shear Beam Load Cell |
| Good long-term stability、High side load tolerance |
| |
| Maximum capacity：0 ... 5 kNto 0 ... 100 kN（0 ... 510 kg to 0 ... 10197 kg） |
| Non-linearity：≤ ± 0,02 % F.S. |
| Rated output：2.0 ± 0,1% mV/V |
| Load cell material：stainless steel 17-4 PH |
| Sealing：welded |
| Cable size：Φ5 × 3000 mm |
|
| |
|
 |

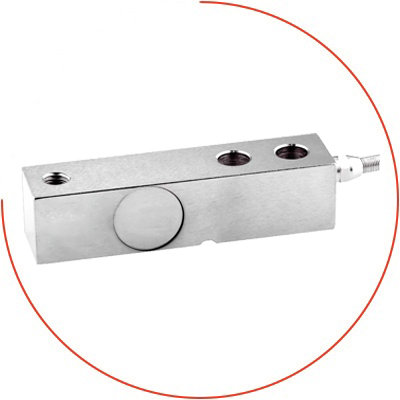

| Series 6224 - Shear Beam Load Cell |
| Good long-term stability、High side load tolerance |
| |
| Maximum capacity：0 ... 100 kg to 0 ... 10 t |
| Non-linearity：≤ ± 0,03 % F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：alloy steel |
| Sealing：welded |
| Cable size：Φ5 × 6000 mm |
|
| |
|
 |

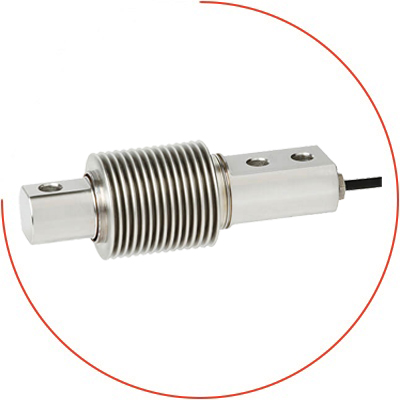

| Series 6231 - Bending Beam Load Cell |
| Welded-on metal bellows、High side load tolerance |
| |
| Maximum capacity：0 ... 20 kg to 0 ... 1500 kg |
| Non-linearity：≤ ± 0,03 % F.S. |
| Rated output：2.0 ± 1% mV/V |
| Load cell material：stainless steel |
| Sealing：welded |
| Cable size：Φ5 × 3000 mm |
|
| |
|
 |

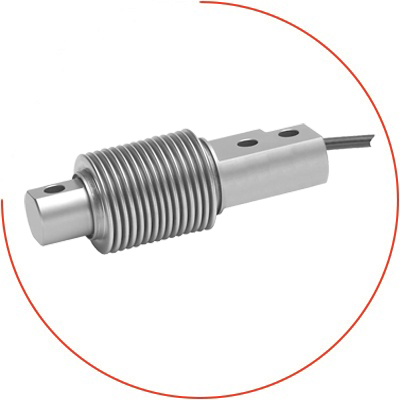

| Series 6232 - Bending Beam Load Cell |
| Welded-on metal bellows、High side load tolerance |
| |
| Maximum capacity：0 ... 10 kg to 0 ... 500 kg |
| Non-linearity：≤ ± 0,02 % F.S. |
| Rated output：2.0 ± 0,1% mV/V |
| Load cell material：stainless steel 17-4 PH |
| Sealing：welded |
| Cable size：Φ5,8 × 3000 mm |
|
| |
|
