| Description |

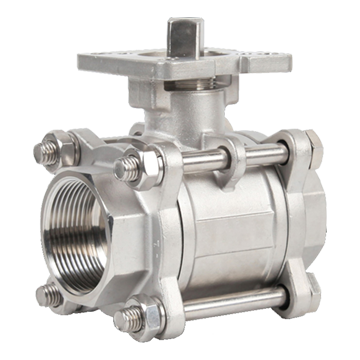

Series 2662 ball valves in stainless steel for separating medium flow.
The ball valves can be connected via the mechanical interface to ISO 5211 with a pneumatic or electrical rotary actuator. |
| |
| Technical Specification |
| Type |
2662 |
| Name |
Ball Valve |
| Orifice |
DN10 ... 100 |
| Body material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Ball material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Selector shaft material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Ball seal |
PTFE |
| Stem seal |
FKM |
| Medium pressure |
Max. 63 bar |
| Process connection |
Thread / Weld end |
| Medium temperature |
-10 ... +200°C |
| Top flange |
ISO 5211 |
| Applications |
Oil industry |
| |
Chemical industry |
| |
Metallurgical Industry |
| |
Machinery manufacturing |
| |
Test equipment |
| |
General industry |
|
|
|
| |
Features |
| |
• Orifice sizes DN10 ... 100 |
| |
• Stainless steel ball valve |
| |
• High flow rates |
| |
• High medium pressure |
| |
• Long life |
| |
• ISO 5211 top flange |
|
| |
| |
| |
|
