| Type |
9311 |
| Name |

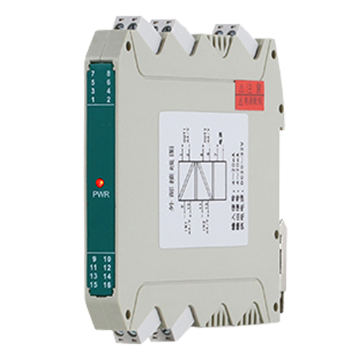

Signal Isolated Converter |
| Input signal |
0 ... 20 mA、4 ... 10 mA、0 ... 5 V、1 ... 5V、0 ... 10 V |
| Input resistance |
Current: ≤ 50Ω; Voltage: ≥ 250KΩ |
| Input current (Max.) |
30 mA |
| Input voltage (Max.) |
10.5 V DC |
| Output signal |
0 ... 20 mA、4 ... 20 mA、0 ... 5 V、1 ... 5V、0 ... 10 V |
| Load impedance (current isolated) |
0 ... 20 mA, 4 ... 20 mA: RL≤ 400Ω
0 ... 5V、1 ... 5V: RL≥ 250KΩ
0 ... 10V: RL≥ 500KΩ |
| Load impedance (voltage isolated) |
0 ... 20 mA, 4 ... 20 mA: RL≤ 400Ω
0 ... 5V、1 ... 5V、0 ... 10 V: RL≥ 20KΩ |
| Power supply |
20 ... 32 V DC |
| Power Consumption |
Single output : ≤ 0.8W; Dual output : ≤ 1.0W |
| Transmission error @20°C |
≤ 0.1% F.S. |
| Temperature coefficient |
≤ 0.0075% / K |
| Response time |
Current input: ≤ 2 ms; Voltage input: ≤ 10 ms |
| Operating temperature |
-10 ... + 50°C |
| Storage temperature |
-10 ... + 60°C |
| Insulation Resistance(power/input/output) |
≥100MΩ (500VDC) |
| Test voltage (power/input/output) |
2000 V AC |
| Test voltage (power/input/output) duration |
1分钟 |
| Test voltage (power/input/output) frequency |
50 Hz |
| Relative humidity |
5 ... 95 % r.h. non-condensing |
| Protection degree |
IP 20 |
| Mounting type |
DIN-35 rail |
| Applications |
Machinery manufacturing |
| |
Chemical industry |
| |
Petrochemical Industry |
| |
Oil and natural gas |
| |
Industrial application |
