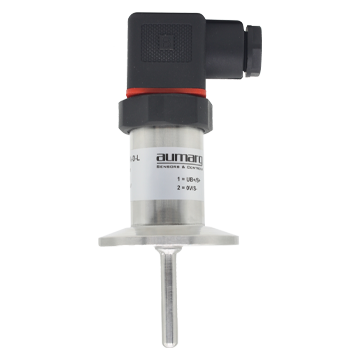

Series 8433 - Resistance Thermometer with Transmitter
For Sanitary Applications


Description
Series 8433 integrated temperature transmitter provides temperature measurement for sanitary applications. It can be used to measure liquid and gas media. The range is: - 30... 150 ° C.

This type of product is connected in the installation process and meets strict requirements. In terms of materials and design, it has sanitary measurement points. All electronic components have moisture-proof function. Standard DIN L-plug, M12×1 or cable outlet can be used for electrical connection.

The integrated temperature transmitter integrates an output signal 4 20 mA transmitter. It ensures the simple and reliable transmission of the measured temperature signal value.

Technical Specification
Type 8433
Name Integrated Temperature Transmitter
Measuring range -30 ... +150°C
Measuring element Pt100
Measuring element tolerance value per IEC 60751 Class B、Class A
Accuracy @ 100°C 0.5%
Response time t50 < 5 S、t90 < 10 S（for sensor diameter 6 mm）
Sensor diameter 6mm、8mm
Sensor insertion length 50mm、100mm、120mm、150mm（Max. 500mm）
Process connection Tri-clamp 1 1/2"
Surface roughness Ra ≤ 0.8
Housing Stainless Steel 316L
Material of process connection Stainless Steel 316L
Material of sensor tube Stainless Steel 316L
Effect of load ± 0.05% / Ω
Temperature units Configurable °C、°F、K
Output signal 4 ... 20 mA
Supply voltage 8 ... 36 V DC
Configuration and calibration data Permanently stored in EEPROM
Switch-on delay, electrical ＜10 ms
Measuring current 0.1 ... 1.0 mA
Storage temperature -30 ... +85°C
Ambient temperature -30 ... +85°C
Vibration resistance acc. to IEC 60751 ≤ 3 g
Electrical connection L-Plug、M12×1、Cable outlet
Reverse polarity and short circuit protection Yes
Protection degree IP65
Applications Hygienic application
  Food and beverage industry
  Pharmaceutical industry, active agent production
  Biotechnology and Life Science Engineering
  Dairy and brewery

  Features
  • Measuring ranges from -30°C to 150°C
  • With transmitter, output 4 ... 20 mA
  • Hygienic design
  • E-connection: L-Plug, M12×1 or cable outlet
  • Process connection and sensor tube from 316L
  • Quick cleaning, without residue
