| Description |

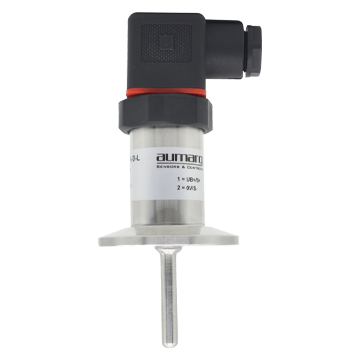

Series 8432 resistance thermometer provides temperature measurement for sanitary applications. It can be used to measure liquid and gas media. The range is: - 50... 200 ° C.
This type of product is connected in the installation process and meets strict requirements. In terms of materials and design, it has sanitary measurement points. All electronic components have moisture-proof function. Standard DIN L-plug or M12×1 can be used for electrical connection.
The resistance thermometer provides PT100 signal direct output. |
| |
| Technical Specification |
| Type |
8432 |
| Name |
Resistance Thermometer |
| Measuring range |
-50 ... +200°C |
| Measuring element |
Pt100 |
| Measuring element tolerance value per IEC 60751 |
Class B、Class A |
| Accuracy @ 100°C |
~ 1 Kelvin |
| Response time |
t50 < 5 S、t90 < 10 S（for sensor diameter 6 mm） |
| Sensor diameter |
6mm、8mm |
| Sensor insertion length |
50mm、100mm、120mm、150mm（Max. 500mm） |
| Process connection |
Tri-clamp 1 1/2" |
| Surface roughness |
Ra ≤ 0.8 |
| Housing |
Stainless Steel 316L |
| Material of process connection |
Stainless Steel 316L |
| Material of sensor tube |
Stainless Steel 316L |
| Output signal |
Pt100 |
| Connection method |
2-wire、3-wire、4-wire |
| Measuring current |
0.1 ... 1.0 mA |
| Storage temperature |
-40 ... +125°C |
| Ambient temperature |
-40 ... +125°C |
| Electrical connection |
L-Plug、M12×1 |
| Protection degree |
IP65 |
| Applications |
Hygienic application |
| |
Food and beverage industry |
| |
Pharmaceutical industry, active agent production |
| |
Biotechnology and Life Science Engineering |
| |
Dairy and brewery |
|
|
|
| |
Features |
| |
• Measuring ranges from -50°C to 200°C |
| |
• Output signal: Pt100 in 2-, 3-, 4-wire circuit |
| |
• Hygienic design |
| |
• E-connection: L-Plug, M12×1 |
| |
• Process connection and sensor tube from 316L |
| |
• Quick cleaning, without residue |
|
| |
| |
| |
|
