| Description |

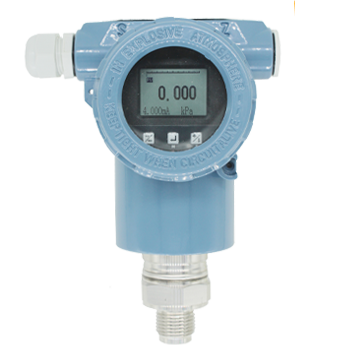

Series 8351 pressure transmitter has a aluminum die-casting housing and a sensor with a Mono-silicon piezoresistive core. Series 8351 is an intelligent pressure transmitter for process industrial applications.
In general industrial applications, this intelligent pressure transmitter has the advantages of high precision and long-term stability, and optional LCD display.
For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections. |
| |
| Technical Specification |
| Type |
8351 |
| Name |
Pressure Transmitter |
| Pressure range |
0 ... 0,1 to 0 ... 400 bar |
| Measuring principle |
Mono-silicon piezoresistive |
| Display |
LCD |
| Accuracy @ 25°C |
≤ ± 0.25% or ≤ ± 0.1% 或0.075% |
| Output signal |
4 ... 20 mA + HART |
| Housing |
Aluminum die-casting |
| Wetted parts |
stainless steel 316L |
| Electrical connection |
Cable gland |
| Process connection |
G1/2" male |
| |
1/2"NPT male |
| |
M20×1.5 male |
| Compensated temperature range |
0 ... +70°C |
| Operating temperature |
-30 ... +85°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Process technology |
| |
Plant construction |
| |
Apparatus construction |
| |
Development applications |
| |
Level measurement |
| |
Water treatment |
| |
Laboratory application |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 0,1 bar to 0 ... 400 bar |
| |
• Output signal：4 ... 20 mA + HART |
| |
• For dynamic or static measurements |
| |
• High precision |
| |
• With / Without LCD - display |
| |
• Process connection G1/2 ", 1/2 "NPT and others |
|
| |
| |
| |
|
