| Description |

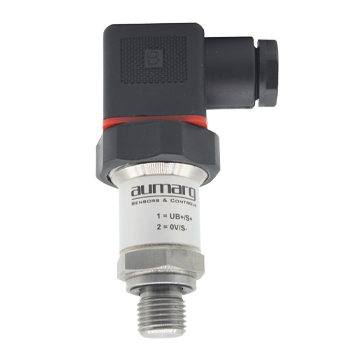

Series 8331 pressure transmitter has a stainless steel housing and a sensor with a metal sputtered film core. Series 8331 is a high overload pressure transmitter for general industrial applications.
In general industrial applications, the advantages of this high overload pressure transmitter are anti pulse and long-term stability during operation.
For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections. |
| |
| Technical Specification |
| Type |
8331 |
| Name |
Pressure Transmitter |
| Pressure range |
0 ... 25 to 0 ... 1200 bar |
| Measuring principle |
thin film on steel |
| Accuracy @ 25°C |
≤ ± 0.5% or ≤ ± 0.25% |
| Output signal |
4 ... 20 mA |
| |
0 ... 10 V |
| |
0 ... 5 V |
| |
1 ... 5 V |
| |
0.5 ... 4.5 V Ratiometric |
| Housing |
stainless steel 316L |
| Wetted parts |
17-4PH |
| Electrical connection |
DIN 175301-803 A |
| |
M12×1(4-pin) |
| |
Cable outlet |
| Process connection |
G1/4" male，HNBR-O Ring |
| |
1/4"NPT male |
| |
R1/4" male |
| Compensated temperature range |
0 ... +70°C |
| Operating temperature |
-25 ... +100°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Machine tool |
| |
Machinery manufacturing |
| |
Engine manufacturing |
| |
Hydraulic pressure |
| |
Heavy equipment |
| |
Construction machinery |
| |
Factory automation |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 25 bar to 0 ... 1200 bar |
| |
• Output signal: 4 ... 20 mA or 0 ... 10 V |
| |
• Thin film metal technology |
| |
• E-connection: L-Plug, M12×1 or cable outlet |
| |
• No mechanical ageing of the measuring cell |
| |
• Process connection G1/4 ", 1/4NPT and others |
|
| |
| |
| |
|
