| Description |

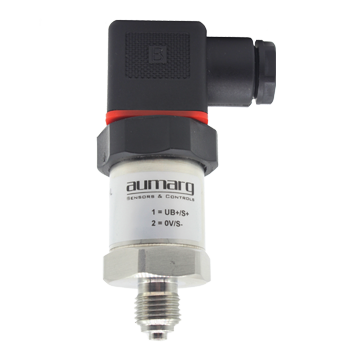

Series 8311 pressure transmitter has a stainless steel housing with a ceramic sensor with thick film technology. Series 8311 is a pressure transmitter for general industrial applications.
In general industrial applications, the advantages of this compact pressure transmitter are robustness and long-term stability during operation.
For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections. |
| |
| Technical Specification |
| Type |
8311 |
| Name |
Pressure Transmitter |
| Pressure range |
0 ... 1 to 0 ... 400 bar |
| Measuring principle |
thick film on ceramic |
| Accuracy @ 25°C |
≤ ± 0.5% |
| Output signal |
4 ... 20 mA |
| |
0 ... 10 V |
| Housing |
stainless steel 316L |
| Wetted parts |
stainless steel 316L |
| Sealing material |
NBR or FKM |
| Electrical connection |
DIN 175301-803 A |
| |
M12×1 (4-pin) |
| |
Cable outlet |
| Fitting thread |
G1/4" male |
| |
1/4"NPT male |
| Operating temperature |
-30 ... +80°C |
| |
-30 ... + 125°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Machine tool |
| |
Machinery manufacturing |
| |
Engine manufacturing |
| |
Hydraulic pressure |
| |
Pneumatic |
| |
HVAC |
| |
Water treatment |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 1 bar to 0 ... 400 bar |
| |
• Output signal: 4 ... 20 mA or 0 ... 10 V |
| |
• Proven ceramic technology |
| |
• E-connection: L-Plug, M12×1 or cable outlet |
| |
• Without transmission liquid |
| |
• Process connection G1/4 ", 1/4NPT and others |
|
| |
| |
| |
|
