| Type |
6373 |
| Name |

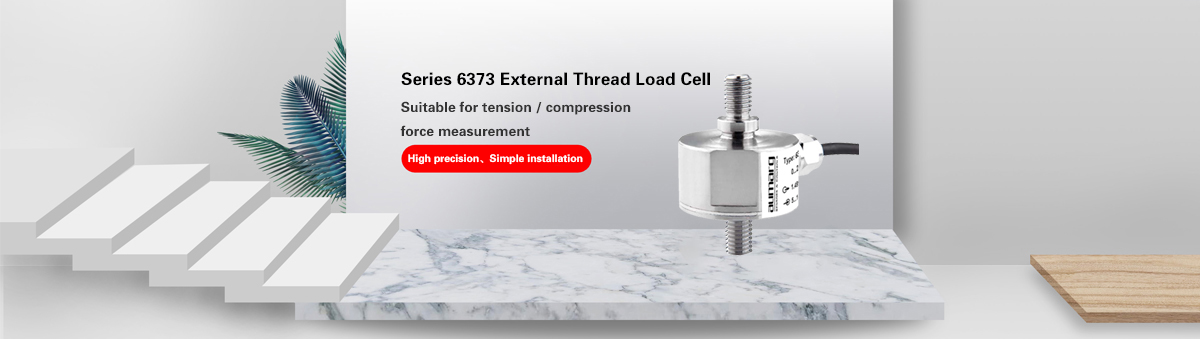

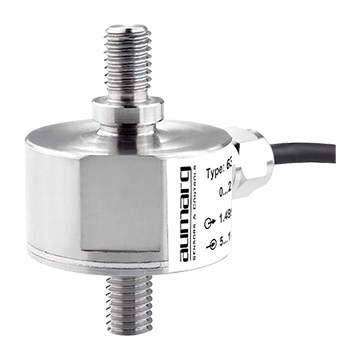

External Thread Load Cell（Tension and compression Force sensor） |
| Measuring ranges |
0 ... 150 to 0 ... 500 kg |
| Measuring principle |
Strain gauge |
| Temperature effect on minimum dead load output |
≤ ± 0.05% F.S. / 10°C |
| Temperature effect on sensitivity |
≤ ± 0.05% F.S. / 10°C |
| Non-linearity |
≤ ± 0.5% F.S. |
| Hysteresis |
≤ ± 0.5% F.S. |
| Repeatabability |
≤ ± 0.5% F.S. |
| Creep error (30 minutes) |
≤ ± 0.1% F.S. |
| Rated output |
1.5 ± 10 % mV/V |
| Zero balance |
≤ ± 2% F.S. |
| Excitation voltage |
5 ... 15 V DC |
| Input resistance |
700 ± 30 Ω |
| Output resistance |
700 ± 5 Ω |
| Insulation resistance (100 V DC) |
≥ 5000 MΩ |
| Safe load limit |
120% F.S. |
| Ultimate load |
150% F.S. |
| Compensated temperature range |
-10 ... +60°C |
| Operating temperature range |
-20 ... + 80°C |
| Load cell material |
stainless steel |
| Cable size |
Φ4 × 1500 mm |
| Protection degree |
IP 67 |
| Applications |
Buildings and equipment |
| |
Production lines、Manufacturing plant |
| |
Measuring and control equipment |
| |
Special equipment and machinery manufacturing |
| |
Rope tension measurement |
