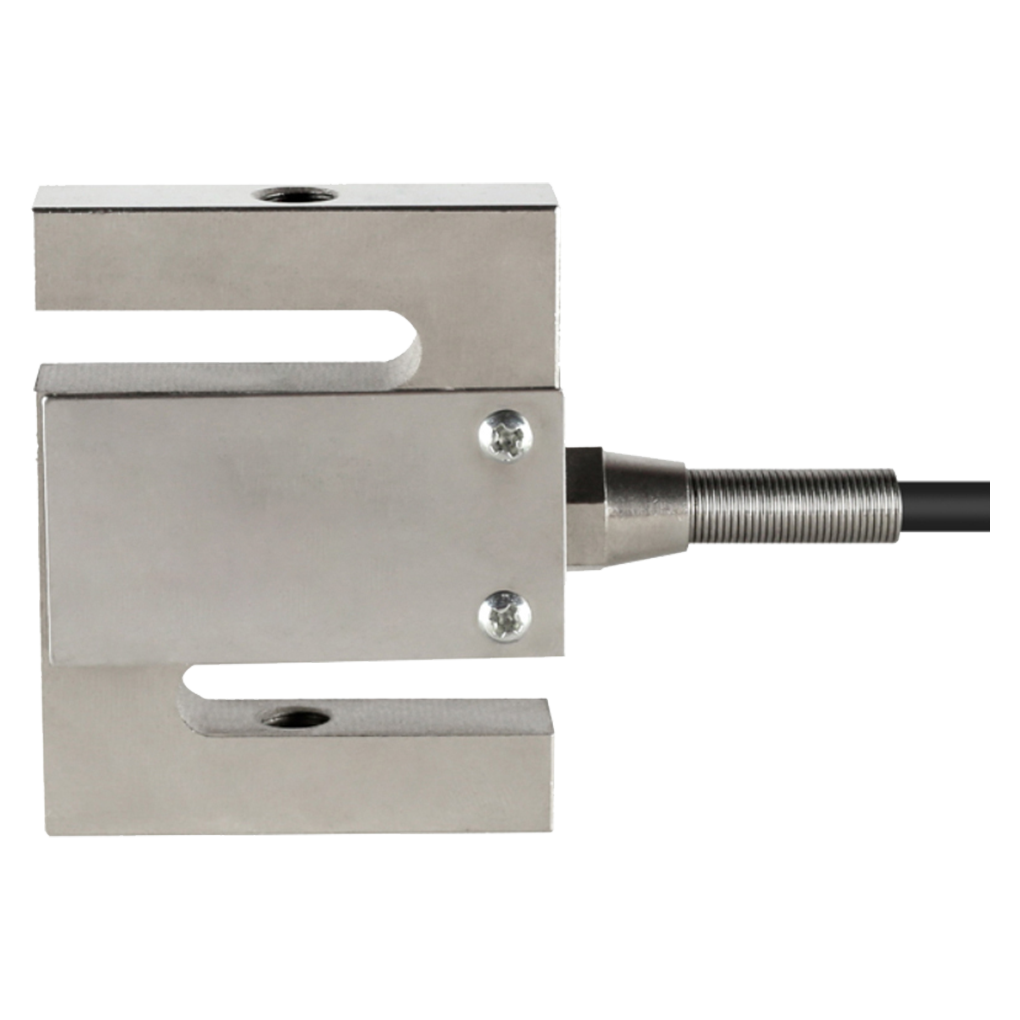

Series 6363 - S type Load Cell
High accuracy、Good long-term stability、tension and compression application


Description
Series 6363 tension / compression force transducers are designed for static and dynamic measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications.

Force transducers of this series are used in weighing technology as well as in countless industrial applications, where high accuracy, simple installation with force introduction via the two internal threads and a favorable price plays a decisive role.

The force to be measured must be applied concentrically and free of transverse force. The force transducers are to be mounted on a level surface.

Technical Specification
Type 6363
Name S type Load Cell（Tension and compression Force sensor）
Measuring ranges 0 ... 5 to 0 ... 5000 kg
Measuring principle Strain gauge
Temperature effect on minimum dead load output ≤ ± 0.05% F.S. / 10°C
Temperature effect on sensitivity ≤ ± 0.05% F.S. / 10°C
Non-linearity ≤ ± 0.05% F.S.
Hysteresis ≤ ± 0.05% F.S.
Repeatabability ≤ ± 0.05% F.S.
Creep error (30 minutes) ≤ ± 0.05% F.S.
Rated output 2.0 ± 5 % mV/V
Zero balance ≤ ± 2% F.S.
Excitation voltage 5 ... 15 V DC
Input resistance 385 ± 30 Ω
Output resistance 350 ± 5 Ω
Insulation resistance (100 V DC) ≥ 5000 MΩ
Safe load limit 150% F.S.
Ultimate load 200% F.S.
Compensated temperature range -10 ... +60°C
Operating temperature range -20 ... + 80°C
Load cell material aluminium alloy or stainless steel
Cable size Φ5 × 3000 mm
Protection degree IP 65
Applications Tank weighing
  Production lines、Manufacturing plant
  Measurement and monitoring facilities
  Building of jigs and special purpose machinery
  Load monitoring of industrial equipment

  Features
  • Measuring ranges from 5 kg to 5000 kg
  • Aluminium alloy or stainless steel construction
  • Tension and compression application
  • Low profile
  • Robust design
  • Protection class IP65
