| Description |

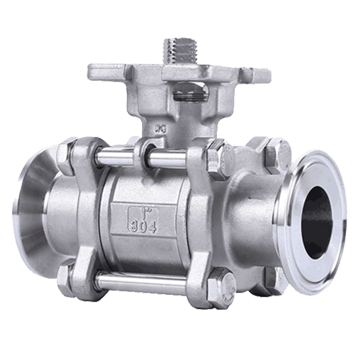

Series 2691 stainless steel ball valves are used to separate media flow in sanitary applications.
The ball valves can be connected via the mechanical interface to ISO 5211 with a pneumatic or electrical rotary actuator. |
| |
| Technical Specification |
| Type |
2691 |
| Name |
Ball Valve |
| Orifice |
DN15 ... 100 |
| Body material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Ball material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Selector shaft material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Ball seal |
PTFE |
| Stem seal |
FKM |
| Medium pressure |
Max. 63 bar |
| Process connection |
Tri-Clamp / Weld end |
| Medium temperature |
-10 ... +200°C |
| Top flange |
ISO 5211 |
| Applications |
Dairy factory |
| |
Brewery |
| |
Food industry |
| |
Pharmaceutical Engineering |
| |
Sterilization equipment |
|
|
|
| |
Features |
| |
• Orifice sizes DN15 ... 100 |
| |
• Stainless steel ball valve |
| |
• High flow rates |
| |
• High medium pressure |
| |
• Suitable for hygienic applications |
| |
• ISO 5211 top flange |
|
| |
| |
| |
|
